| 起源の場所: | 中国製 |
| ブランド名: | Infinity Machine Inc. |
| 証明: | ISO |
| モデル番号: | IF2341 |
| 最小注文数量: | 1 |
|---|---|
| 価格: | Negotiate |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 注文が確認されてから35〜45日後 |
| 支払条件: | T/T |
| 供給の能力: | 月額50セット |
| 製品名: | 100Nユニバーサルテストマシン | モデル: | IF2341 |
|---|---|---|---|
| 力容量：: | 100N | 力の値単位: (切り替える): | N, KN, Gf,Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2 |
| 力分解度: | 1/10,000 | 力の精度: | ±0.5％ |
| 試乗: | 650mm | テスト速度: | 0.01~500mm/min |
| 電源: | AC220V 50Hz または使用者が指定する | 保証: | 1年 |
| ハイライト: | 100N universal test machine,tensile compression testing machine,universal testing machine with warranty |
||

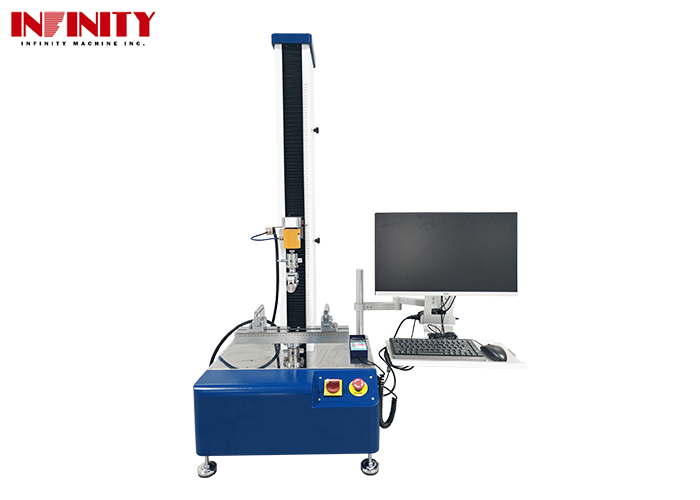

100N Universal Test Machine for Tensile and Compression Testing
Equipment purpose:
Universal testing machines are suitable for stretching, compressing, bending, peeling, etc. of metal wire, metal foil, metal sheet and metal tape, rubber, plastic, sea/foam, waterproof materials, wires and cables, textiles, mesh ropes, non-woven fabrics and other materials. Shearing, tearing, bursting, puncture, fatigue and other tests.
Equipment features:
Multifunctional:
With different fixtures, various tests such as tension, compression, bending, shearing, tearing, and peeling can be performed.
High precision:
It is driven AC servo motor, high-precision gapless ball screw transmission, and matched with American TRANSCELL high-precision explosion-proof LOADCELL. The force value accuracy is as high as: ±0.5%; the displacement accuracy is as high as: 0.01mm.
High intelligence:
Automatic fracture identification, automatic return, and multiple curve combination functions, such as load-displacement, load-time, displacement-time stress-strain, strain-time, stress-time and other curve analysis.
Highly applicable:
9 languages can be switched: Simplified/Traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, universally applicable.
Specifications:
| Model: | IF2341 |
| Force capacity: | 100N (10Kg) or specify |
| Force unit: (switchable) | N, KN, Kgf, Lbf, Mpa,Lbf/In², Kgf/MM² |
| Force resolution: | 1/10,000 |
| Force accuracy: | ±0.5% |
| Test trip: | 650mm |
| Effective width of test space: | 130mm |
| Test speed: | 0.01~500mm/min |
| Speed accuracy: | ±0.5% |
| Displacement resolution: | 0.01mm |
| Transmission rod: | High precision ball screw |
| Equipment size: (WxDxH) | 500X600X1460mm |
| Equipment weight: | 155 Kg |
| Working power supply: | AC220V 50Hz or specified by user |
| Grips | Tensile grips and compression grips with 5cm diameter |
Peeling test graph.
Professional test reports:
The report developed based on Crystal Reports version 10.0 can automatically calculate strength, elastic modulus E, RP0.2, ReL, ReH,
Elongation rate, etc., the report header and content can be changed freely, and the curve is automatically generated. Can be exported to Excel, PDF and other formats.
