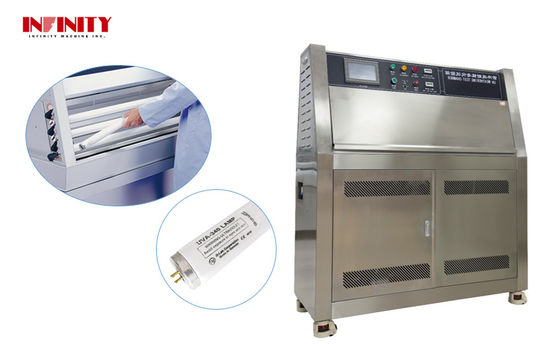

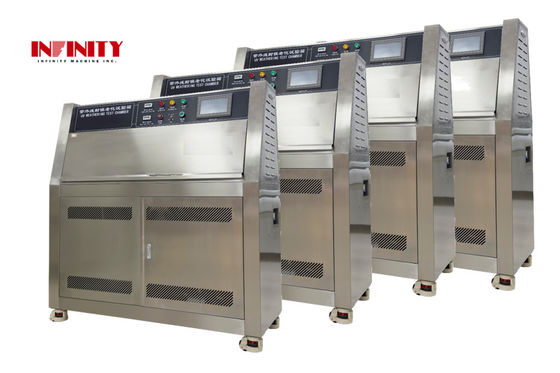

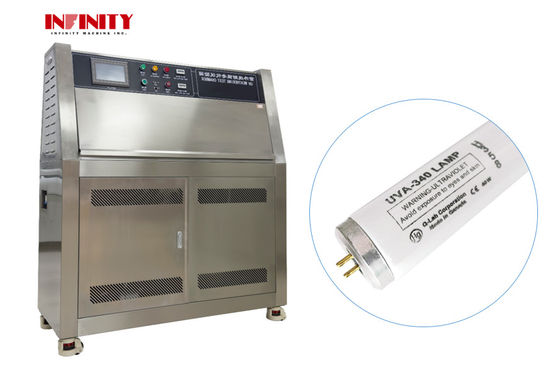

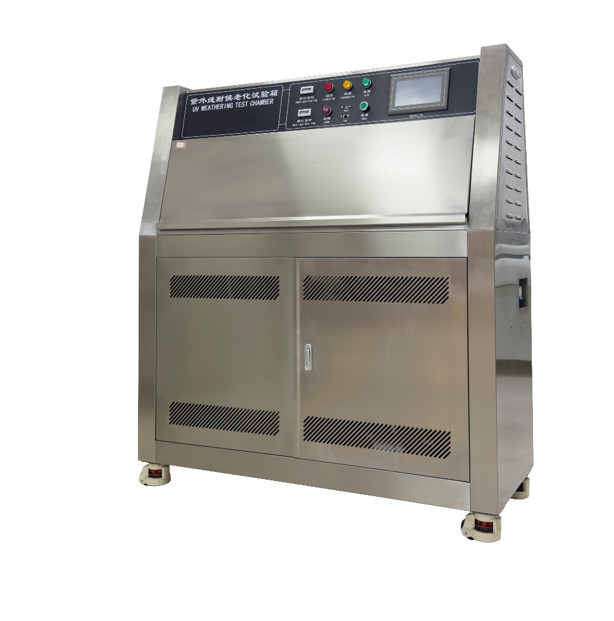

UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber

UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber

  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
  • UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber
商品の詳細:
起源の場所: 中国製
ブランド名: Infinity Machine Inc.
証明: ISO
モデル番号: IE60シリーズ
お支払配送条件:
最小注文数量: 1
価格: Negotiate
パッケージの詳細: 透明シート+スポンジ+木製の紙箱
受渡し時間: 注文確認後20〜30日
支払条件: T/T
供給の能力: 1か月あたり200セット
連絡先
詳細製品概要
製品名: 紫外線テスト部屋 モデル: IE60シリーズ
温度範囲: RT+20℃~70℃ 湿度範囲: ≥90%RH
適用規格: ISO 4892-3、ISO 11507;ASTM D4329、D499、D4587、D5208、G154、G53; 特徴: 機器制御の自動操作,自動テストサイクル,労働を節約し,テスト効率を改善します.
ボックス構造: 室内・外部の箱:SUS304#ステンレス鋼が室内・外部の箱に使用される サンプルホルダー: アルミフレームタイプ ベースフレーム ビジョンプレート 24個
力: 電子 保証: 1年

UV Weathering Test Chamber Environmental Test Chambers IE6002 IE6002A
Equipment Overview

UV weathering test chamber uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.

UV Weathering Test Chamber with Automatic Test Cycle SUS304 Stainless Steel and UVA-340 Lamps Environmental Test Chamber 0
Applicable Standards
  • ASTM D4329, D499, D4587, D5208, G154, G53
  • ISO 4892-3, ISO 11507
  • EN 534; EN 1062-4; BS 2782; JIS D0205; SAE J2020
Key Features
  • Using the original American UV lamp, the light stability is good, and the test results are high reproducibility
  • Provides the best sunlight UV simulation, low maintenance and easy to use
  • Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency
Specification Parameters
Parameter IE6002 IE6002A
Temperature range RT+20℃~70℃
Humidity range ≥90%RH
Temperature fluctuation ±0.5℃
Temperature uniformity ≦1.0℃
Center distance inside the lamp 70mm
Distance between specimen and lamp center 50±3mm
Modulator tube UVA-340 L=1200/40W, 8pcs UVB-313 L=1200/40W, 8pcs
Irradiance Adjustable within 1.2W/m² Adjustable within 1.0W/m²
Ultraviolet wavelength 315-400nm 280-315nm
Effective irradiation region 900*210mm
Irradiated blackboard temperature 50℃~70℃
Internal dimension: W*H*D (mm) 1140*400*390
Outside box size: W*D*H (mm) 1300*500*1360
Box structure Indoor and outdoor boxes: SUS304# stainless steel
Sample holder Aluminum frame type base frame vision plate, 24pcs
Standard sample size 75*290mm
Safety protection device Leakage circuit breaker control circuit, overload, short circuit alarm, over temperature alarm, water shortage protection
Power supply AC220V, 50Hz, 5KW
Special specifications need to be specified
Product Packaging

UV Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
