| 起源の場所: | 中国製 |
| ブランド名: | Infinity Machine Inc. |
| 証明: | ISO |
| モデル番号: | IC2186 |
| 最小注文数量: | 1 |
|---|---|
| 価格: | Negotiate |
| パッケージの詳細: | 透明シート+スポンジ+木製の紙箱 |
| 受渡し時間: | 注文が確認されてから35〜45日後 |
| 支払条件: | T/T |
| 供給の能力: | 毎月50セット |
| 製品名: | フレキシブルケーブル屈曲試験機 | モデル: | IC2186 |
|---|---|---|---|
| 応用: | プラグで接続されたケーブルの屈曲耐久性試験を適用する. | 規格: | GB2099-2008、IEC 60884-1:2022 |
| ジグ: | 6セット | 曲げ角: | 1~180° (±90°) (調整可能) |
| 曲げ速度: | 10~60c.p.m (調節可能) | 負荷: | 50100, 200, 300, 500g (各6g) |
| 力: | AC220VまたはAC120V | 保証: | 1年 |

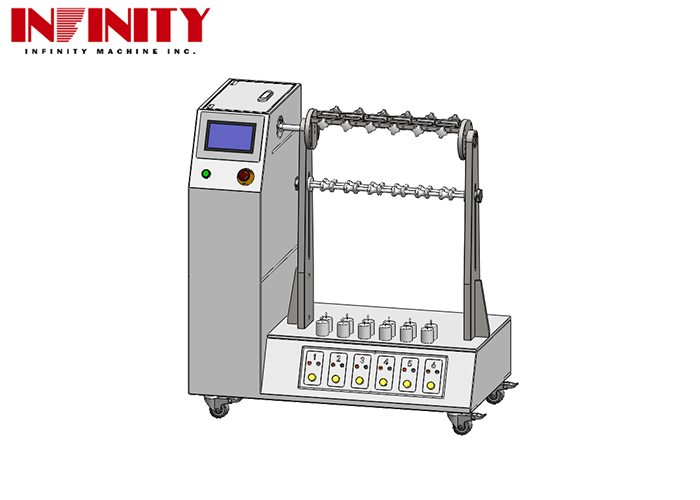

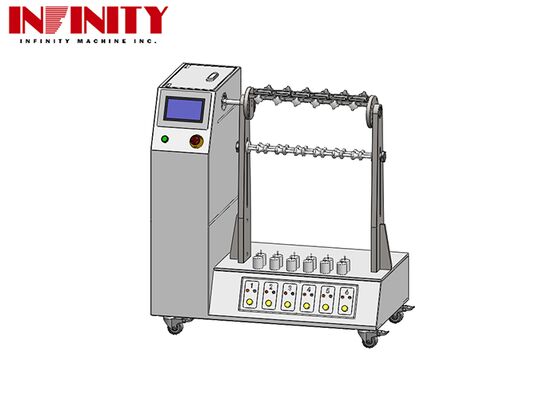

This flexible cable flexing test equipment features adjustable bending angles from 1° to 180° and complies with IEC 60884-1 standards. Designed for bending endurance testing of cables connected with plugs, this machine evaluates cable durability by simulating real-world bending conditions.
Model: IC2186
The IEC 60884-1:2022 flexible cable flexing test machine is engineered for comprehensive bending endurance testing of cables connected with plugs, providing reliable performance and accurate results.
This testing machine performs bending endurance tests for cables connected with plugs. The sample is securely fixed on the jig with appropriate weights applied to the cable. The jig then swings right and left at the preset angle. After completing the required rotation cycles, the test automatically stops for cable inspection. For electrified cable testing, the machine counts rotation cycles until cable failure and automatically stops when the cable breaks and disconnects from electricity.
| Specification | Details |
|---|---|
| Model | IC2186 |
| Standards | GB2099-2008, IEC 60884-1:2022 |
| Jig | 6 sets |
| Bending Angle | 1~180° (±90°) Adjustable |
| Bending Speed | 10~60 c.p.m Adjustable |
| Counter | 6 individual counters |
| Load | 50, 100, 200, 300, 500g (6 per each) |
| Weight | 132kg |
| Dimension (W*D*H) | 960*530*850mm |
| Power Supply | AC220V 3A or specified by user |
Product Packaging: The flexible cable flexing test machine is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and labeled with product information for easy identification.
Shipping: Shipping is handled by reliable and experienced shipping companies. Transportation is arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.
Contact our sales team for personalized product recommendations based on your specific testing requirements.
