Name: Robotic Cable Torsion Test Machine CRIA 0003.2-2016 Compliant with 4 Test Stations and Adjustable Torsion Angle
Brand: Infinity Machine International Inc.
SKU: IC2274
Price: 50,050.00 USD
Availability: InStock

ホーム製品ケーブルを折りたたむ機械

Robotic Cable Torsion Test Machine CRIA 0003.2-2016 Compliant with 4 Test Stations and Adjustable Torsion Angle

商品の詳細:

起源の場所:	中国製
ブランド名:	Infinity Machine Inc.
証明:	ISO
モデル番号:	IC2274

お支払配送条件:

最小注文数量:	1
価格:	Negotiate
パッケージの詳細:	透明シート+スポンジ+木製の紙箱
受渡し時間:	注文が確認されてから35〜45日後
支払条件:	T/T
供給の能力:	毎月50セット

連絡先

詳細製品概要

製品名:	ロボットケーブルねじり試験機 CRIA 0003.2-2016	モデル:	IC2274
応用:	ロボットケーブルねじり試験機は、多芯ケーブルや通信ケーブルのねじり試験に適しています。	規格:	China Robot Industry Alliance の規格「CRIA 0003.2-2016 Special Cables for Industrial Robots — Part 2: Te
ワーキングステーション:	4	オリオン角:	1~±180° / ±270° / ±360° (カスタマイズ可能)
テスト速度:	1～30サイクル/分（調整可能）	力:	AC220VまたはAC120V
保証:	1年

Robotic Cable Torsion Test Machine CRIA 0003.2-2016 Wire Life Testing Machine

Comprehensive testing equipment for multi-core cables and communication cables compliant with CRIA 0003.2-2016 standards for industrial robot special cables.

Product Overview

Model: IC2274

Compliance: China Robot Industry Alliance CRIA 0003.2-2016 Special Cables for Industrial Robots -- Part 2: Test Methods

Application

Designed for torsion testing of multi-core cables and communication cables. Performs repeated torsion tests on longitudinally installed metal wires to evaluate plastic deformation resistance and detect defects during repeated torsion testing.

Technical Specifications

Item	Specification
Test Station	4 stations (Customizable)
Sample Diameter	3~15mm (Customizable)
Specimen Test Length	500~1000mm (Customizable)
Sample Torsion Speed	1~30 cycles/min (Adjustable)
Torsion Angle	1~±180° /±270° / ±360° (Customizable)
Control Method	Touch screen control
Counting Digits	0-99999999 cycles
Motor	Servo motor (Japan)
Machine Weight	Approx. 400 Kg
Working Power Supply	AC220V, 50Hz ; AC120V, 60Hz (specifiable)
Equipment Power	1.8KW
Equipment Dimensions	W1700D740H1700mm

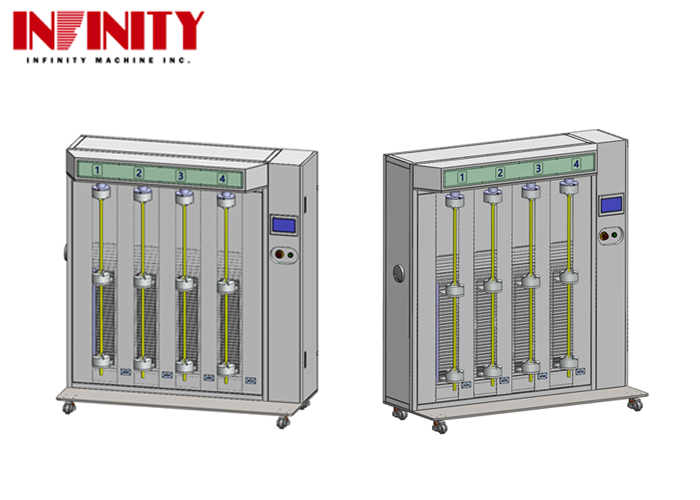

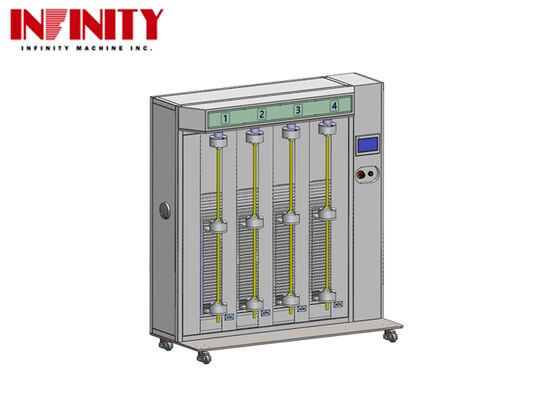

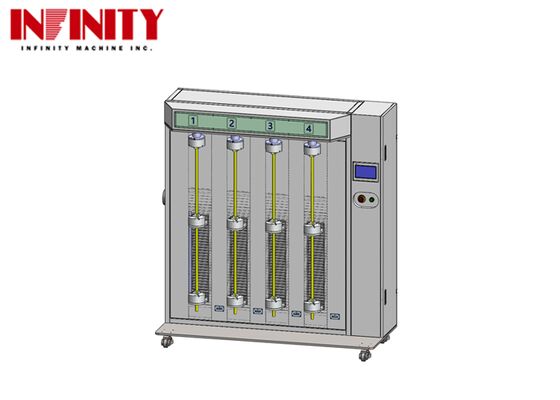

Product Appearance

Packaging and Shipping

Product Packaging: The robot wire torsion tester is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and labeled with product information for easy identification.
Shipping: Shipping is handled by reliable and experienced shipping companies. Transportation is arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.
