| 起源の場所: | 中国製 |
| ブランド名: | Infinity Machine Inc. |
| 証明: | ISO |
| モデル番号: | IC2274 |
| 最小注文数量: | 1 |
|---|---|
| 価格: | Negotiate |
| パッケージの詳細: | 透明シート+スポンジ+木製の紙箱 |
| 受渡し時間: | 注文が確認されてから35〜45日後 |
| 支払条件: | T/T |
| 供給の能力: | 毎月50セット |
| 製品名: | ロボットケーブルねじり試験機 | モデル: | IC2274 |
|---|---|---|---|
| 応用: | 多芯ケーブルや通信ケーブルのねじり試験に適した自動ケーブルねじり試験機です。 | 規格: | China Robot Industry Alliance の規格「CRIA 0003.2-2016 Special Cables for Industrial Robots — Part 2: Te |
| ワーキングステーション: | 4 | オリオン角: | 1~±180° / ±270° / ±360° (カスタマイズ可能) |
| テスト速度: | 1～30サイクル/分（調整可能） | 力: | AC220VまたはAC120V |
| 保証: | 1年 |

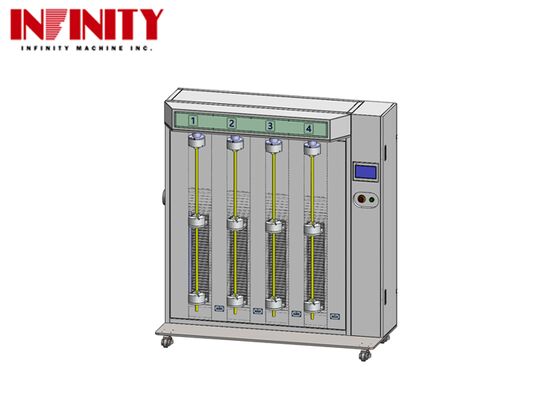

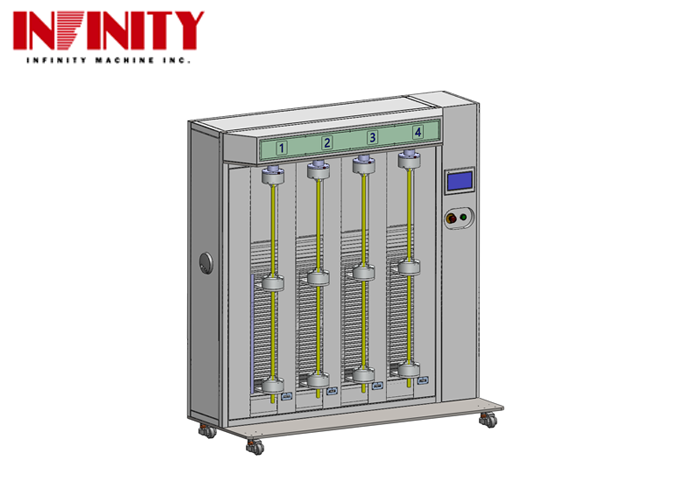

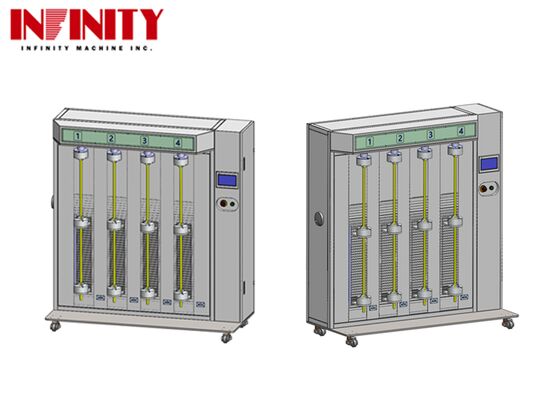

This robotic cable torsion test machine is designed for comprehensive testing of multi-core cables and communication cables in compliance with CRIA 0003.2-2016 standards for industrial robot special cables.
The cable torsion testing machine is specifically designed for torsion testing of multi-core cables and communication cables. It performs repeated torsion tests on longitudinally installed metal wires to evaluate plastic deformation resistance and detect defects during repeated torsion testing.
| Item | Specification |
|---|---|
| Test Station | 4 stations (Customizable) |
| Sample Diameter | 3~15mm (Customizable) |
| Specimen Test Length | 500~1000mm (Customizable) |
| Sample Torsion Speed | 1~30 cycles/min (Adjustable) |
| Torsion Angle | 1~±180° /±270° / ±360° (Customizable) |
| Control Method | Touch screen control |
| Counting Digits | 0-99999999 cycles |
| Motor | Servo motor (Japan) |
| Machine Weight | Approx. 400 Kg |
| Working Power Supply | AC220V, 50Hz ; AC120V, 60Hz (specifiable) |
| Equipment Power | 1.8KW |
| Equipment Dimensions | W1700*D740*H1700mm |
Product Packaging: The robot wire torsion tester is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and labeled with product information for easy identification.
Shipping: Shipping is handled by reliable and experienced shipping companies. Transportation is arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.
Contact our sales team for personalized product recommendations based on your specific testing requirements.
